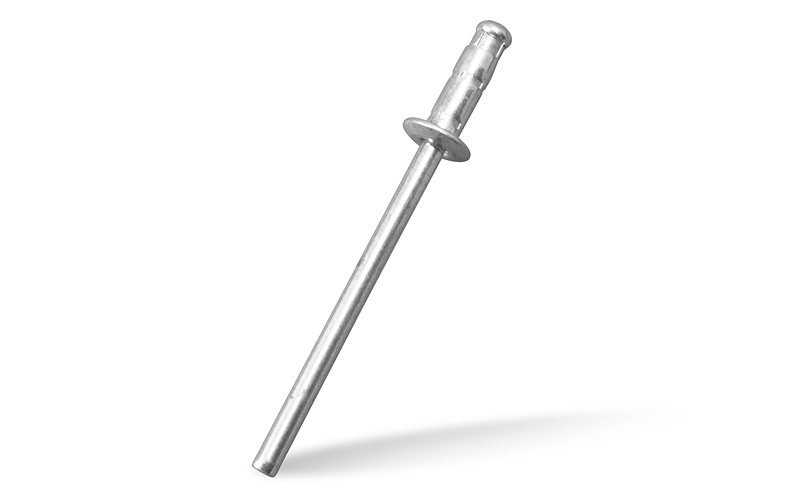

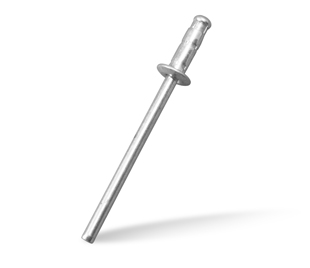

Multi-Grip blind rivet |
Material
- Head
- StellStainless steel
- Mandrel
- StellStainless steel
| D (mm) | L (MM) | Thick (MM) | Surface Diameter (MM) | Head Thick (MM) |
|---|---|---|---|---|
| ø3.2 | 9.5 | 1.0 | 6.4 | 1.0~4.5 |
| 12.0 | 1.0~7.0 |
| ø4.0 | 13.5 | 1.2 | 8.0 | 2.0~8.0 |
| ø4.8 | 11.0 | 1.6 | 9.6 | 1.5~6.0 |
| 14.0 | 1.5~9.0 | |||
| 17.0 | 6.0~12.7 |
