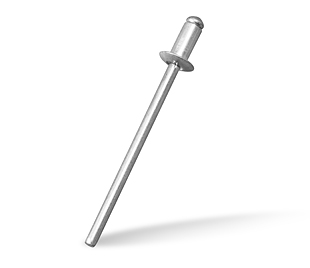

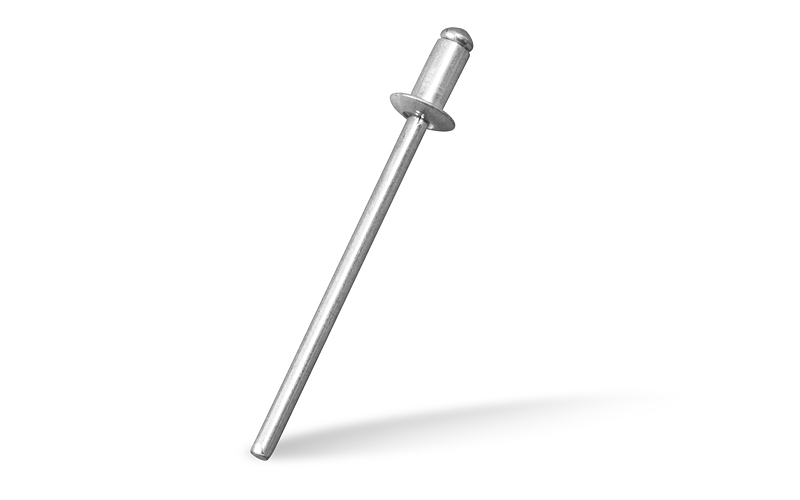

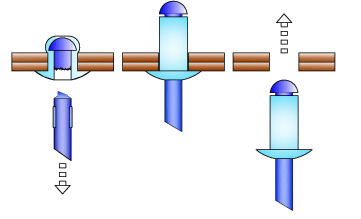

Dome head blind rivet
|
Material
- Head
- AluminumStellStainless steelStainless steel
- Mandrel
- StellStellStellStainless steel
| SIZE NO |
D |
L |
GRIP RANGE (mm) |
| Inch | mm | Inch | mm |
|---|
| 3-1 |
3/32 (2.4) |
1/4 |
6.4 |
0.5-2.5 |
| 3-2 |
5/16 |
8.0 |
2.5-4.5 |
| 3-3 |
11/32 |
9.0 |
4.5-6.0 |
| 4-1 |
1/8 (3.2) |
1/4 |
6.0 |
0.5-3.0 |
| 4-2 |
5/16 |
8.0 |
3.0-4.5 |
| 4-3 |
11/32 |
8.9 |
4.5-5.4 |
| 4-4 |
3/8 |
10.2 |
5.4-6.5 |
| 4-5 |
29/64 |
11.4 |
6.5-8.5 |
| 4-6 |
1/2 |
12.7 |
8.5-10.5 |
| 4-8 |
5/8 |
16.0 |
10.5-13.0 |
| 4-9 |
3/4 |
19.0 |
13.0-16.0 |
| 5-1 |
5/32(4.0) |
1/4 |
6.4 |
0.5-2.8 |
| 5-2 |
5/16 |
8.0 |
2.8-4.2 |
| 5-3 |
3/8 |
10.0 |
4.2-6.2 |
| 5-4 |
29/64 |
11.4 |
6.2-7.8 |
| 5-5 |
1/2 |
12.7 |
7.8-9.2 |
| 5-6 |
9/16 |
14.1 |
9.2-10.5 |
| 5-7 |
5/8 |
16.0 |
10.5-12.3 |
| 5-8 |
11/16 |
17.3 |
12.3-13.6 |
| 5-9 |
3/4 |
19.0 |
13.6-15.4 |
| 6-1 |
3/16 (4.8) |
1/4 |
6.4 |
0.5-2.5 |
| 6-2 |
5/16 |
8.0 |
2.5-4.2 |
| 6-3 |
3/8 |
10.2 |
4.2-6.2 |
| 6-4 |
1/2 |
12.7 |
6.2-9.5 |
| 6-5 |
5/8 |
16.0 |
9.5-12.2 |
| 6-6 |
3/4 |
19.0 |
12.2-15.2 |
| 6-7 |
7/8 |
22.2 |
15.2-18.4 |
| 6-8 |
1 |
25.4 |
18.4-21.0 |
| 8-3 |
1/4 (6.4) |
3/8 |
10.2 |
4.2-6.2 |
| 8-4 |
1/2 |
12.7 |
6.2-9.5 |
| 8-5 |
5/8 |
16.0 |
9.5-12.2 |
| 8-6 |
3/4 |
19.0 |
12.2-15.2 |
| 8-7 |
7/8 |
22.2 |
15.2-18.4 |
| 8-8 |
1 |
25.4 |
18.4-21.0 |
