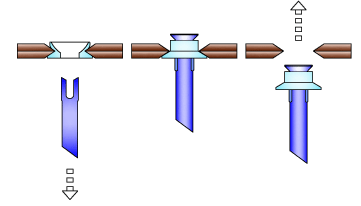

Countersunk head blind rivet
|
Material
- Head
- Stell
- Mandrel
- Stell
| D | Hole Size | Head Thick (MM) | L (MM) | Surface Diameter (MM) | Thick (MM) |
|---|---|---|---|---|---|
| ø3.0 | ø3.3~3.4 | 1.0~6.1 | 1.7~6.5 | 4.8~6.4 | 0.6~1.0 |
|
|
